FROM TABLE 1(CLAUSE 7.1.1 AND 7.1.2) FOR PIPES IN CLASSES 1,2&3(ALL DIMENSIONS IN MILLIMETERS) |
|||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal outside diameter |
Mean outside diameter | Outside diameter at any point | Wall thickness | ||||||||||
Class 1-(2.5MPS) | CLASS 2-.4Mpa | Class 3 –(.6 Mpa) | |||||||||||
Min | MAX | MIN | MAX | AVG MAX | AVG MIN | MAX | AVG MAX | AVG MIN | MAX | AVG MAX | AVG MIN | MAX | |

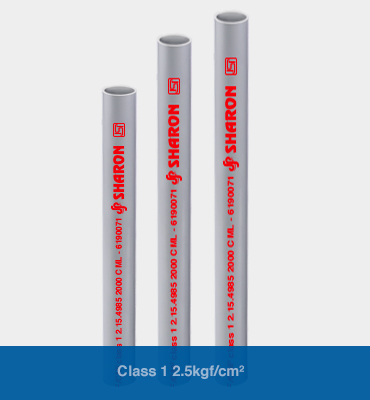

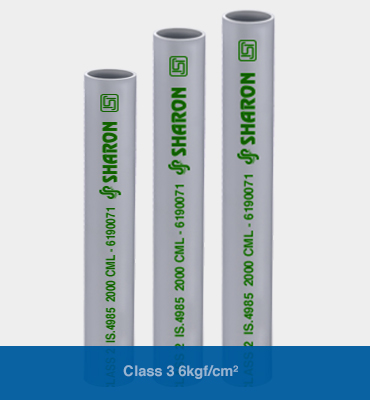

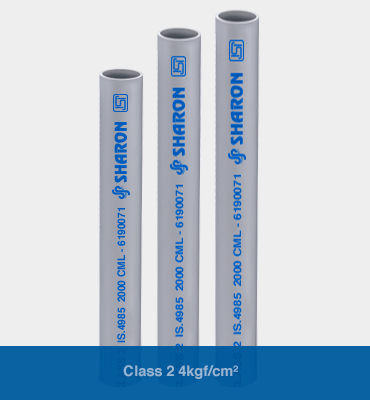

40 | 40.0 | 40.3 | 39.3 | 46.5 | NO PRODUCT CLASSIFICATION AVAILABLE IN 4985 STANDARD | 1.8 | 1.4 | 1.8 | |||||
50 | 50.0 | 50.3 | 49.4 | 2.1 | 1.7 | 2.1 | |||||||
63 | 63.0 | 63.3 | 62.2 | 63.8 | STANDARD NOT AVAILABLE IN IS 4985 | 1.9 | 1.5 | 1.9 | 2.7 | 2.2 | 2.7 | ||
75 | 75.0 | 75.3 | 74.1 | 75.9 | 2.2 | 1.8 | 2.2 | 3.1 | 2.6 | 3.1 | |||
90 | 90.0 | 90.3 | 88.90 | 91.1 | 1.7 | 1.3 | 1.7 | 2.6 | 2.1 | 2.6 | 3.7 | 3.1 | 3.7 |
110 | 110.0 | 110.4 | 108.6 | 111.4 | 2.0 | 1.6 | 2.0 | 3.0 | 2.5 | 3.0 | 4.3 | 3.7 | 4.3 |
140 | 140.0 | 140.5 | 138.3 | 141.7 | 2.4 | 2.0 | 2.4 | 3.8 | 3.2 | 3.8 | 5.5 | 4.8 | 5.5 |
160 | 160.0 | 160.5 | 158.0 | 162.0 | 2.8 | 2.3 | 2.8 | 4.3 | 3.7 | 4.3 | 6.2 | 5.4 | 6.2 |
180 | 180.0 | 180.5 | 177.8 | 182.2 | 3.1 | 2.6 | 3.1 | 4.9 | 4.2 | 4.9 | 7.0 | 6.1 | 7.0 |
200 | 200.0 | 200.6 | 197.6 | 202.4 | 3.4 | 2.9 | 3.4 | 5.3 | 4.6 | 5.3 | 7.7 | 6.8 | 7.7 |
FROM TABLE 1(CLAUSE 7.1.1 AND 7.1.2) FOR PIPES IN CLASSES 4,5 & 6(ALL DIMENSIONS IN MILLIMETERS) |
|||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal outside diameter |
Mean outside diameter | Outside diameter at any point | Wall thickness | ||||||||||
Class 4-(.8MPS) | CLASS 5-1.0Mpa | Class 6 –(1.25 Mpa) | |||||||||||
Min | MAX | MIN | MAX | AVG MAX | AVG MIN | MAX | AVG MAX | AVG MIN | MAX | AVG MAX | AVG MIN | MAX | |

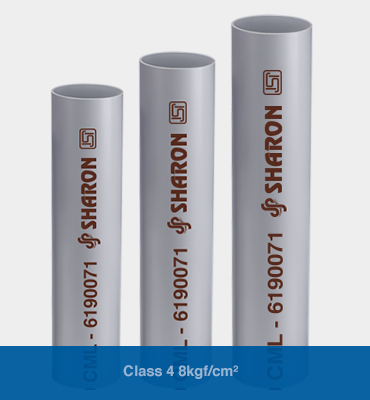

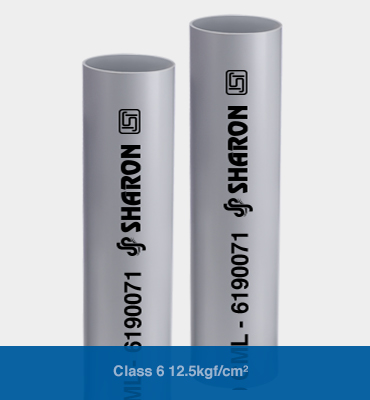

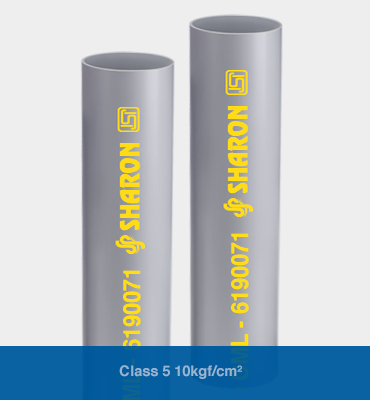

20 | 20.0 | 20.3 | 19.5 | 20.5 | STANDARD NOT AVAILABLE IN IS 4985 | 1.5 | 1.1 | 1.5 | 1.8 | 1.4 | 1.8 | ||
25 | 25.0 | 25.3 | 24.5 | 25.5 | 1.6 | 1.2 | 1.6 | 1.8 | 1.4 | 1.8 | 2.1 | 1.7 | 2.1 |
32 | 32.0 | 32.3 | 31.5 | 32.5 | 1.9 | 1.5 | 1.9 | 2.2 | 1.8 | 2.2 | 2.7 | 2.2 | 2.7 |
40 | 40.0 | 40.3 | 39.3 | 46.5 | 2.2 | 1.8 | 2.2 | 2.7 | 2.2 | 2.7 | 3.3 | 1.4 | 3.3 |
50 | 50.0 | 50.3 | 49.4 | 50.6 | 2.8 | 2.3 | 2.8 | 3.3 | 2.8 | 3.3 | 4.0 | 3.4 | 4.0 |
63 | 63.0 | 63.3 | 62.2 | 63.8 | 3.2 | 2.8 | 3.2 | 4.1 | 3.5 | 4.1 | 5.0 | 4.3 | 5.0 |
75 | 75.0 | 75.3 | 74.1 | 75.9 | 4.0 | 3.4 | 4.0 | 4.9 | 4.2 | 4.9 | 5.9 | 5.1 | 5.9 |
90 | 90.0 | 90.3 | 88.90 | 91.1 | 4.6 | 4.0 | 4.6 | 5.7 | 5.0 | 5.7 | 7.0 | 6.1 | 7.0 |
110 | 110.0 | 110.4 | 108.6 | 111.4 | 5.6 | 4.9 | 5.6 | 7.0 | 6.1 | 7.0 | 8.5 | 7.5 | 8.5 |
140 | 140.0 | 140.5 | 138.3 | 141.7 | 6.4 | 6.3 | 6.4 | 8.7 | 7.7 | 8.7 | 10.7 | 9.5 | 10.7 |
160 | 160.0 | 160.5 | 158.0 | 162.0 | 7.2 | 7.2 | 7.2 | 9.9 | 8.8 | 9.9 | 12.2 | 10.9 | 12.2 |
180 | 180.0 | 180.5 | 177.8 | 182.2 | 8.2 | 8.0 | 8.2 | 11.1 | 9.9 | 11.1 | 13.7 | 12.2 | 11.1 |
200 | 200.0 | 200.2 | 197.6 | 202.4 | 9.0 | 8.9 | 9.0 | 12.3 | 11.0 | 12.3 | 15.2 | 13.6 | 12.3 |
FEATURES OF SHARON
VERGIN PVC
Virgin PVC Products made from high quality raw materials and High-Grade PVC constitution.
NON-FLAMMABLE
Non-flammable thus preventing the risk of a short circuit and other potential hazards.
